.22 and Air Gun Ringmounts

Ringmounts are available in as indicated in the following finishes to complement scope and gun finishes:

BG (Black Gloss) for highly finished guns
BM (Black Matte) for non-reflective actions

Deluxe Ringmounts
Regular Ringmounts
Anschutz .22 Ringmounts QD
CZ Ringmounts ZKM 611 and Early Model 1 For other options please see: Lynx Stud Bases - QD Ring Mounts - Lever Ring Mounts.

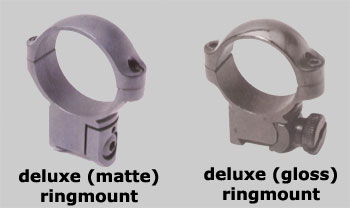

Deluxe Ringmounts

Low = 8.75mm   Medium  = 12.40mm  High = 15.20mm

Streamlined precision design with concealed hardened steel clamp. Comes complete with fasteners to give you a choice of Hex or QD clamping. Suitable for all types of 9.5-12mm dovetail grooved recievers. Optional recoil stop (included) is recommended for air guns.

Description Finish Product Number
1" LOW BM 5132U

1" MED BM 5133U

1" HIGH BM 5134U

Regular Ringmounts / Anschutz

Steel ringmounts for all common .22's and air-guns with 9.5 - 11mm (3/8") dovetail grooved recievers. Optional recoil stop provided is recommended for air guns.

Description Finish Product Number
30mm LOW, QD BG 4334N
30mm MED, QD BG 4335N

Anschutz .22 Ringmounts QD

Especially designed for ANSCHUTZ and other .22 rifles with tubular recievers such as Krico, Mossberg, Winchester and Remington.

Description Finish Product Number
1" HIGH BG 6042N

CZ Ringmounts ZKM 611 and Early Model 1

Low = 8.75mm  Medium = 11.90mm
(These rings are not available in high)

For CZ ZKM 611 magnum semi-auto and Early Model 1 with 14mm dovetails.

Description Finish Product Number
RINGMOUNT QD 1" LOW BM 4650N
RINGMOUNT LEVER 1" LOW BM 4650L
RINGMOUNT 1" LOW BM 4414
RINGMOUNT 1" Med BM 4416
RINGMOUNT 1" High BM 4418
