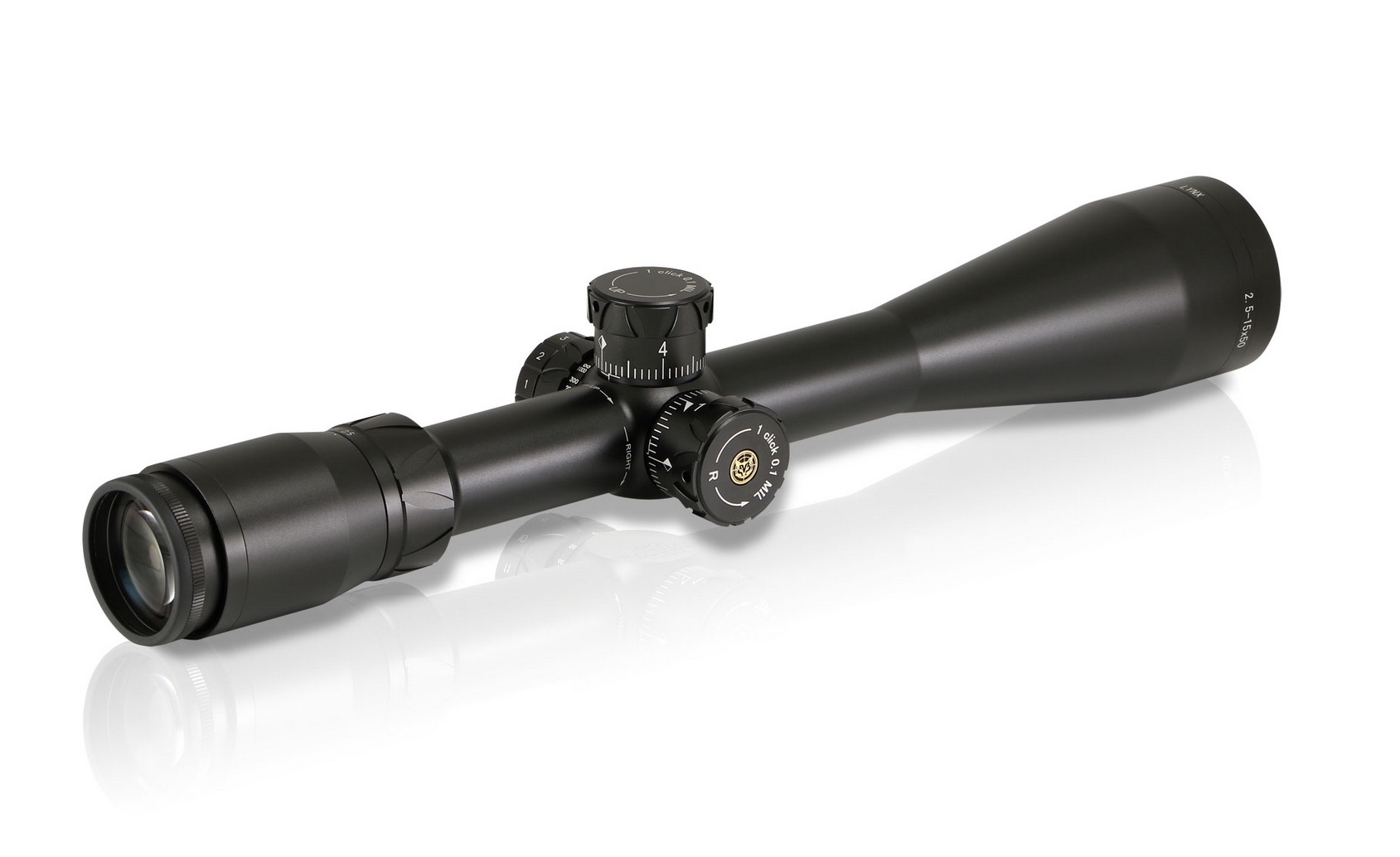

Extra low dispersion glass and the latest anti-reflective lens coating technology gives brilliant image clarity and brightness. The scope is easy on the eye during prolonged periods of use due to its generous and forgiving eye relief and the long 155 mm main tube makes for easy mounting onto long-action rifles.
Lynx RF-Tactical reticle is newly designed for tactical sport shooters. It is graduated in mils in 1 mil and 1/2 mil increments. The centre circle and dot illuminate green to provide for both quick and accurate aiming, depending on your situational requirement.
The ranging scale, calibrated to range 50cm high target from 200 metres to 1 200 metres in 100 metre increments and 33cm & 25cm high targets from 200 metres to 600 metres, is inset at the bottom of the sight picture.
Low-profile tactical controls elevation control is fitted with an easy to engage zero stop function which permits full upward adjustment of the point of aim and returns precisely to your pre-determined zero position.
The scope adjustment controls are engraved with large, highly-visible numbers which make them easy to read in poor light. Each click moves the point of aim 0.1 mil and one full revolution of the control moves the point of aim 5 mils, which matches the length of the measured centre portion of the reticle.
The parallax focus wheel is mounted on the side of the scope with the reticle illuminator switch. Parallax is focusable from 35 metres to beyond infinity.
|Low Power||High Power|
|Exit pupil diameter (mm)||11.6||3.4|
|Dioptre adjustment||-2.5D to +2.5D|
|Total Windage adjustment range||60 MOA|
|Total Elevation adjustment range||60 MOA|
|Tube material||Black hard anodized aluminium (HV300)|
|Water proof||Positive internal pressure 300kPa. Submersible 1m for 60 minutes.|
|Recoil proof||1000G 1ms x 1000|
|Fog proof||Dry nitrogen purged|
|Temperature operating range||-20 to +71°C|
|Switch type||Mechanical saddle mounted. 10 brightness settings. Instant off/on.|
|Eyepiece||European-style fast focus|
|Antireflective lens coating||Fully multi coated|
|Windage / Elevation control||Target/Tactical with zero stop on elevation|
|Windage click value||0.1 mil|
|Elevation click value||0.1 mil|
|Country of manufacture||Japan|
